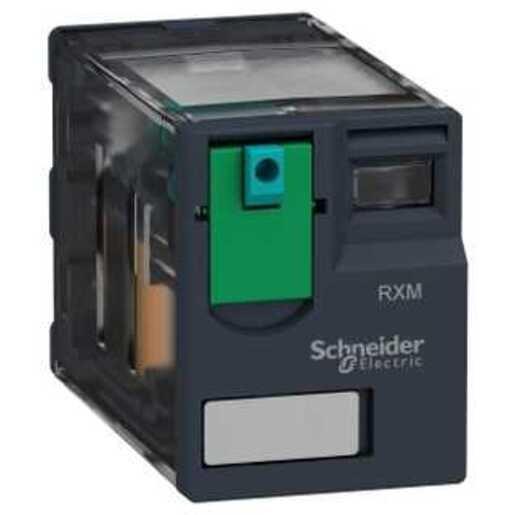

MINIATURE RELAY 2 CO 48 V DC
Rexel Part:
SCDRXM2AB1ED
Mfr Number:
RXM2AB1ED
Barcode:
3389119403412
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
Supplier Packages :
Package options may not always be available
Package Options
Number of items
1 Box
10 EAC
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details
This Zelio RXM miniature plug - in relay has a coil control voltage of 48V DC and has 2 changeover contacts DPDT double pole double throw with a rating of 12A It has large choice of number of contacts for high rated current u
This Schneider Electric RXM miniature plug-in relay has a coil control voltage of 48Vdc and has 2 changeover contacts DPDT (double pole double throw) with a rating of 12 amperes. It has a mechanical indicator and a lockable test button. This Miniature Plug-In Relay reflects Schneider Electric expertise in relay since 1924, by help to reduce the size of enclosures and at the same time increase machine reliability for industrial machines, packaging, textile, HVAC, automation control panels, low / medium voltage switchgear, motor Controls, PLC Interfaces, power supplies,Building or medical equipment, lighting Controls. It has large choice of number of contacts for high rated current use with space-saving design. It also offer one-step loackble test button and mechanical indicator for contact status.
This Schneider Electric RXM miniature plug-in relay has a coil control voltage of 48Vdc and has 2 changeover contacts DPDT (double pole double throw) with a rating of 12 amperes. It has a mechanical indicator and a lockable test button. This Miniature Plug-In Relay reflects Schneider Electric expertise in relay since 1924, by help to reduce the size of enclosures and at the same time increase machine reliability for industrial machines, packaging, textile, HVAC, automation control panels, low / medium voltage switchgear, motor Controls, PLC Interfaces, power supplies,Building or medical equipment, lighting Controls. It has large choice of number of contacts for high rated current use with space-saving design. It also offer one-step loackble test button and mechanical indicator for contact status.
Technical Specifications
Technical Specifications
Does this product not have all the specifications you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
Switching relay |
|
| Drive, switching attitude |
Mono stable
|
|---|---|
| Material of contact insert |
Other
|
| Type of electric connection |
Plug-in connection
|
| Rated control supply voltage AC 50 Hz |
0 V
|
| Width |
21 mm
|
| Drive, polarization |
Polarity free
|
| Depth |
55 mm
|
| Material contact |
Other
|
| Height |
27 mm
|
| Nominal current |
12 A
|
| Number of contacts as normally open contact |
0
|
| With forced-guided contacts |
Yes
|
| Voltage type for actuating |
DC
|
|---|---|
| With LED indication |
No
|
| Rated control supply voltage AC 60 Hz |
0 V
|
| Complete with socket |
No
|
| Rated control supply voltage DC |
48-48 V
|
| Degree of protection (IP) |
IP40
|
| Number of contacts as change-over contact |
2
|
| Material of contact surface |
Other
|
| Number of contacts as normally closed contact |
0
|
| Type of switch contact |
Double contact
|
| With detachable clamps |
Yes
|
