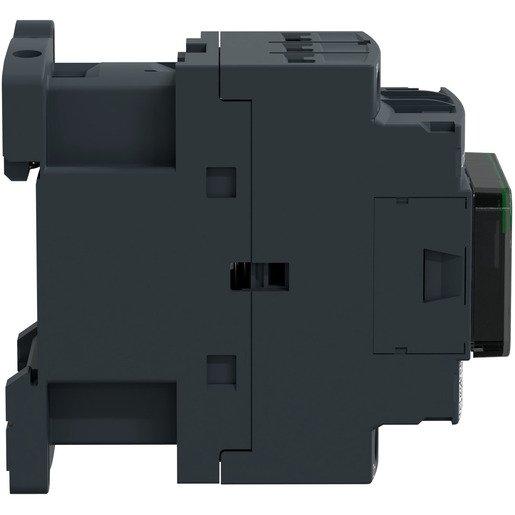

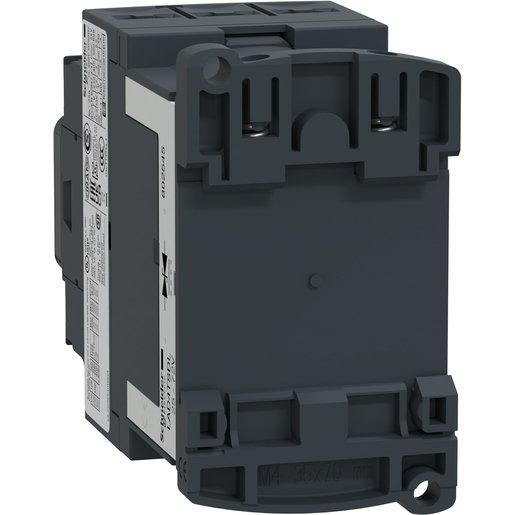

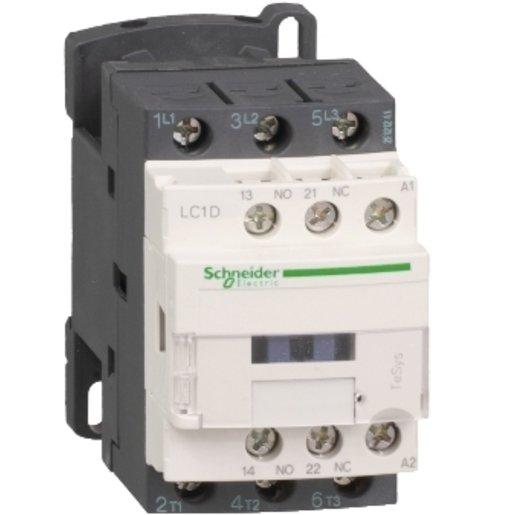

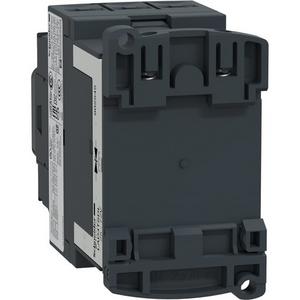

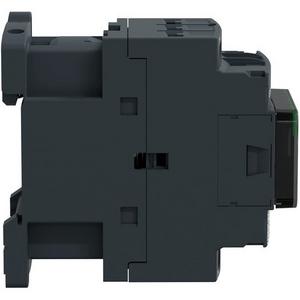

3P CONT 9A AC3 4KW 1N0 1NC 48VDC COIL
Rexel Part:
SCDLC1D09ED
Mfr Number:
LC1D09ED
Barcode:
3389110353174
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
Supplier Packages :
Package options may not always be available
Package Options
Number of items
1 Pack
15 EAC
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details
All contactors are sourced from leading Australian suppliers with an impressive range to suit local conditions and requirements. They all have the relevant approvals and meet all applicable Australian standards.
TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides a 48V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
TeSys D contactor, 3 poles (3NO), for motor control applications up to 9A/690V AC-3 (4kW@400V). It provides a 48V DC coil, 1NO+1NC built-in auxiliary contacts (NC mirror certified), connection by screw clamp terminals. For operating rates until 3600 cycles/hour and environments until 60°C, it procures high reliability and durability to demanding applications. Compact (45mm width), DIN-rail mounting or screw fixing. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine), Green Premium compliant (RoHS/REACh).
Technical Specifications
Technical Specifications
Power contactor AC switching | |
| Rated control supply voltage DC | 48-48 V |
|---|---|
| Modular version | No |
| Voltage type for actuating | DC |
| Number of auxiliary contacts as normally closed contact | 1 |
| Depth | 95 mm |
| Rated operation current Ie at AC-3, 400 V | 9 A |
| Type of electrical connection of main circuit | Screw connection |
| Rated operation current Ie at AC-4, 400 V | 6 A |
| Number of normally closed contacts as main contact | 0 |
|---|---|
| Width | 45 mm |
| Rated operation power at AC-4, 400 V | 2.2 kW |
| Number of auxiliary contacts as normally open contact | 1 |
| Height | 77 mm |
| Rated operation power at AC-3, 400 V | 4 kW |
| Number of normally open contacts as main contact | 3 |
| Rated operation current Ie at AC-1, 400 V | 25 A |
