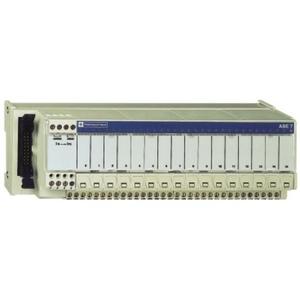

Passive sensor-actuator interface (with cable)
|Type of connector for trunk line||Other|
|Cable outer diameter for cable gland||0|
|Length of the preassembled cable||0 m|
|Cable length configurable||Yes|
|Number of sensor-/actuator-slots||1|
|Number of channels per connector slot||16|
|Type of branches for sensor-/actuator cables||Other|
|Number of poles sensor/actuator slots||16|
|Rated voltage||24 V|
|Operating voltage||24 V|
|Max. current carrying capacity per I/O signal||0.5|
|Max. current carrying capacity per socket||1.8|
|Max. total current||1.8|
|Diameter contact female||0|
|Material contact body||Other copper alloys|
|Material of contact surface||Other|
|Material insulation body||Other|
|Thread sleeves sensor/actuator slots||Other|
|With LED indication||Yes|
|With potential separation||No|
|Connection for NPN-sensors||Yes|
|Fix cable version suitable for cable guide chain||No|
|Operation temperature||-5 °C|
|Degree of protection (IP)||IP2X|
|Explosion safety category for gas||None|
|Explosion safety category for dust||None|
