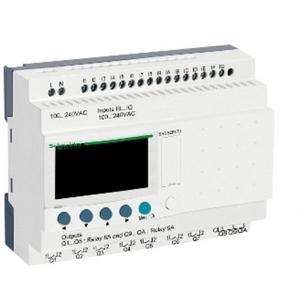

Smart Relay 26 I/O 100-240VAC Displ + Clk
Rexel Part:
SCDSR3B261FU
Mfr Number:
SR3B261FU
Barcode:
3389110550009
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
Supplier Packages :
Package options may not always be available
Package Options
Number of items
1 Pack
20 EAC
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details
This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 100V - 240V alternating current It has 26 inputs / outputs with screw - clamp terminals It has compact design - allowing installation
This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 100V-240V alternating current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.
This Zelio Logic SR3 compact smart relay / programmable controller uses a supply voltage of 100V-240V alternating current. It has 26 inputs / outputs with screw-clamp terminals. It has compact design, allowing installation on DIN rail. It also offers simple programming, display and diagnosing of malfunctions display and navigation buttons. Its simple ladder programming makes it adapted for non-specialists.
Technical Specifications
Technical Specifications
Does this product not have all the specifications you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
Logic module |
|
| Supporting protocol for DeviceNet Safety |
No
|
|---|---|
| Certified for UL hazardous location group F (carbonaceous dusts) |
No
|
| Number of HW-interfaces serial TTY |
0
|
| Supporting protocol for PROFINET IO |
No
|
| Certified for UL hazardous location class III |
No
|
| Radio standard UMTS |
No
|
| Redundancy |
No
|
| Supporting protocol for LON |
No
|
| Appendant operation agent (Ex ia) |
No
|
| Number of digital outputs |
10
|
| Certified for UL hazardous location division 2 |
No
|
| Performance level according to EN ISO 13849-1 |
None
|
| Supporting protocol for other bus systems |
No
|
| Supply voltage DC |
0 V
|
| Radio standard GSM |
No
|
| Number of HW-interfaces wireless |
0
|
| Supporting protocol for SUCONET |
No
|
| Number of HW-interfaces RS-422 |
0
|
| Radio standard WLAN 802.11 |
No
|
| Power consumption |
12 W
|
| Supporting protocol for DeviceNet |
No
|
| Number of interfaces PROFINET |
0
|
| Certified for UL hazardous location group D (propane) |
No
|
| Number of analogue outputs |
0
|
| Supporting protocol for CAN |
No
|
| Supporting protocol for Data-Highway |
No
|
| Suitable for safety functions |
No
|
| Supporting protocol for PROFIBUS |
No
|
| Rack-assembly possible |
No
|
| Certified for UL hazardous location group E (metal dusts) |
No
|
| Supply voltage AC 60 Hz |
100-240 V
|
| Certified for UL hazardous location group A (acetylene) |
No
|
| Supporting protocol for EtherNet/IP |
No
|
| Certified for UL hazardous location group C (ethylene) |
No
|
| Supporting protocol for INTERBUS-Safety |
No
|
| Supporting protocol for INTERBUS |
No
|
| Width |
124.6 mm
|
| Supporting protocol for TCP/IP |
No
|
| Degree of protection (IP) |
IP20
|
| Depth |
59.5 mm
|
| Certified for UL hazardous location class I |
No
|
| Front built-in possible |
Yes
|
| Supporting protocol for PROFIsafe |
No
|
|---|---|
| Switching current |
8 A
|
| With time switch clock |
Yes
|
| Appendant operation agent (Ex ib) |
No
|
| Supporting protocol for EtherCAT |
No
|
| Supporting protocol for SafetyBUS p |
No
|
| Radio standard Bluetooth |
No
|
| Supporting protocol for Modbus |
No
|
| Number of HW-interfaces industrial Ethernet |
0
|
| Height |
90 mm
|
| Voltage type (supply voltage) |
AC
|
| Number of analogue inputs |
0
|
| Expandable |
Yes
|
| Wall mounting/direct mounting |
Yes
|
| SIL according to IEC 61508 |
None
|
| Number of HW-interfaces other |
1
|
| Supporting protocol for AS-Interface Safety at Work |
No
|
| Certified for UL hazardous location division 1 |
No
|
| Supporting protocol for ASI |
No
|
| Explosion safety category for dust |
None
|
| With relay output |
Yes
|
| With display |
Yes
|
| Supporting protocol for Foundation Fieldbus |
No
|
| Certified for UL hazardous location group G (non-conductive dusts) |
No
|
| Number of HW-interfaces RS-485 |
0
|
| Number of HW-interfaces USB |
0
|
| Number of HW-interfaces RS-232 |
1
|
| Radio standard GPRS |
No
|
| Supply voltage AC 50 Hz |
100-240 V
|
| Rail mounting possible |
Yes
|
| IO link master |
No
|
| Basic device |
Yes
|
| Supporting protocol for SERCOS |
No
|
| Certified for UL hazardous location class II |
No
|
| Certified for UL hazardous location group B (hydrogen) |
No
|
| Number of HW-interfaces parallel |
0
|
| Explosion safety category for gas |
None
|
| Expansion device |
No
|
| Supporting protocol for KNX |
No
|
| With optical interface |
No
|
| Number of digital inputs |
16
|
| Supporting protocol for PROFINET CBA |
No
|
