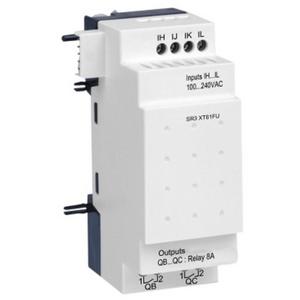

6 I/O REL. EXTENSION FOR 100-240VAC SR
Rexel Part:
SCDSR3XT61FU
Mfr Number:
SR3XT61FU
Barcode:
3389110550122
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
Supplier Packages :
Package options may not always be available
Package Options
Number of items
1 Pack
48 EAC
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details
This Zelio Logic SR3 discrete I/O extension module smart relays uses a supply voltage of 100V - 240V alternating current It has 6 inputs / outputs contact with screw - clamp terminals It enables simple ladder programming - ad
This Zelio Logic SR3 discrete I/O extension module smart relays uses a supply voltage of 100V-240V alternating current. It has 6 inputs / outputs contact with screw-clamp terminals. It enables simple ladder programming, adapted for non-specialists.
This Zelio Logic SR3 discrete I/O extension module smart relays uses a supply voltage of 100V-240V alternating current. It has 6 inputs / outputs contact with screw-clamp terminals. It enables simple ladder programming, adapted for non-specialists.
Technical Specifications
Technical Specifications
Does this product not have all the specifications you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
Logic module |
|
| With display |
No
|
|---|---|
| Supply voltage DC |
0 V
|
| Supporting protocol for ASI |
No
|
| Expansion device |
Yes
|
| Front built-in possible |
Yes
|
| SIL according to IEC 61508 |
None
|
| Certified for UL hazardous location group A (acetylene) |
No
|
| Radio standard GSM |
No
|
| Supporting protocol for TCP/IP |
No
|
| Appendant operation agent (Ex ib) |
No
|
| Height |
90 mm
|
| Supporting protocol for Foundation Fieldbus |
No
|
| Radio standard GPRS |
No
|
| With optical interface |
No
|
| Supporting protocol for PROFINET CBA |
No
|
| Supply voltage AC 50 Hz |
100-240 V
|
| Certified for UL hazardous location group E (metal dusts) |
No
|
| Supporting protocol for CAN |
No
|
| Radio standard UMTS |
No
|
| Supporting protocol for LON |
No
|
| Number of HW-interfaces RS-485 |
0
|
| Supporting protocol for SafetyBUS p |
No
|
| Supporting protocol for PROFIBUS |
No
|
| Number of digital inputs |
4
|
| Supporting protocol for SUCONET |
No
|
| With time switch clock |
No
|
| Certified for UL hazardous location group B (hydrogen) |
No
|
| Rail mounting possible |
Yes
|
| Radio standard WLAN 802.11 |
No
|
| Number of HW-interfaces parallel |
0
|
| Rack-assembly possible |
No
|
| Explosion safety category for dust |
None
|
| Certified for UL hazardous location group C (ethylene) |
No
|
| Certified for UL hazardous location group F (carbonaceous dusts) |
No
|
| Supporting protocol for KNX |
No
|
| Supporting protocol for INTERBUS |
No
|
| Supporting protocol for DeviceNet |
No
|
| Certified for UL hazardous location division 2 |
No
|
| Supporting protocol for EtherCAT |
No
|
| Certified for UL hazardous location group D (propane) |
No
|
| Supply voltage AC 60 Hz |
100-240 V
|
| Supporting protocol for Modbus |
No
|
| Supporting protocol for PROFINET IO |
No
|
|---|---|
| Supporting protocol for INTERBUS-Safety |
No
|
| Certified for UL hazardous location class I |
No
|
| Number of HW-interfaces RS-422 |
0
|
| Certified for UL hazardous location class III |
No
|
| Number of interfaces PROFINET |
0
|
| Number of HW-interfaces wireless |
0
|
| Number of analogue inputs |
0
|
| Certified for UL hazardous location class II |
No
|
| Degree of protection (IP) |
IP20
|
| Number of HW-interfaces RS-232 |
0
|
| Certified for UL hazardous location division 1 |
No
|
| Redundancy |
No
|
| Radio standard Bluetooth |
No
|
| Wall mounting/direct mounting |
Yes
|
| Suitable for safety functions |
No
|
| Basic device |
Yes
|
| Power consumption |
1.1 W
|
| Supporting protocol for other bus systems |
No
|
| Width |
35 mm
|
| Switching current |
8 A
|
| Appendant operation agent (Ex ia) |
No
|
| Supporting protocol for PROFIsafe |
No
|
| Number of HW-interfaces USB |
0
|
| Explosion safety category for gas |
None
|
| Supporting protocol for AS-Interface Safety at Work |
No
|
| Number of HW-interfaces industrial Ethernet |
0
|
| Certified for UL hazardous location group G (non-conductive dusts) |
No
|
| Number of analogue outputs |
0
|
| Performance level according to EN ISO 13849-1 |
None
|
| IO link master |
No
|
| With relay output |
Yes
|
| Number of HW-interfaces other |
0
|
| Supporting protocol for EtherNet/IP |
No
|
| Voltage type (supply voltage) |
AC
|
| Depth |
59.5 mm
|
| Number of digital outputs |
2
|
| Supporting protocol for DeviceNet Safety |
No
|
| Supporting protocol for SERCOS |
No
|
| Number of HW-interfaces serial TTY |
0
|
| Expandable |
No
|
| Supporting protocol for Data-Highway |
No
|
