Min: 1 EAC

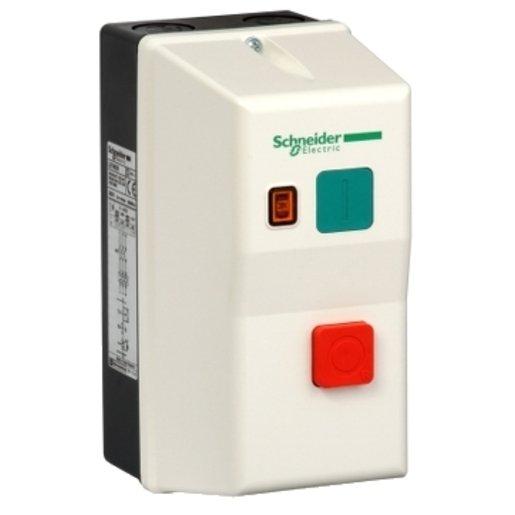

Motor starter | |
Type of motor starter | Direct starter |
---|---|
With short-circuit release | No |
Rated control supply voltage AC 50 Hz | 415 V |
Rated control supply voltage AC 60 Hz | 415 V |
Voltage type for actuating | AC |
Rated operation power at AC-3, 230 V, 3-phase | 2.2 kW |
Rated operation power at AC-3, 400 V | 4 kW |
Rated power, 460 V, 60 Hz, 3-phase | 5.5 kW |
Rated power, 575 V, 60 Hz, 3-phase | 7.5 kW |
Rated operation current Ie | 11.5 A |
Rated operation current at AC-3, 400 V | 11.5 A |
Overload release current setting | 8 A |
Number of auxiliary contacts as normally open contact | 0 |
Number of auxiliary contacts as normally closed contact | 0 |
Ambient temperature, upper operating limit | 40 °C |
Temperature compensated overload protection | Yes |
Release class | CLASS 10 |
Type of electrical connection of main circuit | Screw connection |
Type of electrical connection for auxiliary- and control current circuit | Screw connection |
Rail mounting possible | No |
With transformer | No |
Number of command positions | 2 |
Suitable for emergency stop | No |
Number of indicator lights | 1 |
External reset possible | Yes |
With fuse | No |
Degree of protection (IP) | IP65 |
Supporting protocol for TCP/IP | No |
---|---|
Supporting protocol for PROFIBUS | No |
Supporting protocol for CAN | No |
Supporting protocol for INTERBUS | No |
Supporting protocol for ASI | No |
Supporting protocol for Modbus | No |
Supporting protocol for Data-Highway | No |
Supporting protocol for DeviceNet | No |
Supporting protocol for SUCONET | No |
Supporting protocol for LON | No |
Supporting protocol for PROFINET IO | No |
Supporting protocol for PROFINET CBA | No |
Supporting protocol for SERCOS | No |
Supporting protocol for Foundation Fieldbus | No |
Supporting protocol for EtherNet/IP | No |
Supporting protocol for AS-Interface Safety at Work | No |
Supporting protocol for DeviceNet Safety | No |
Supporting protocol for INTERBUS-Safety | No |
Supporting protocol for PROFIsafe | No |
Supporting protocol for SafetyBUS p | No |
Supporting protocol for other bus systems | No |
Width | 78 mm |
Height | 160 mm |
Depth | 108 mm |
Function | Direct starter (DOL) |
Rated voltage | 415 |
