Solid state relay - 1 PHASE SOLID STATE RELAY 100VDC 12A 24V - SSM1D312BD

1 PHASE SOLID STATE RELAY 100VDC 12A 24V

Schneider

1 PHASE SOLID STATE RELAY 100VDC 12A 24V

Rexel Part:

SCDSSM1D312BD

Mfr Number:

SSM1D312BD

Barcode:

3606480579479

Please LogIn

To view pricing, availability and special offers, click the button below and login.

Supplier Packages :

Package options may not always be available

Package Options

Number of items

1 Pack

72 EAC

Product Details

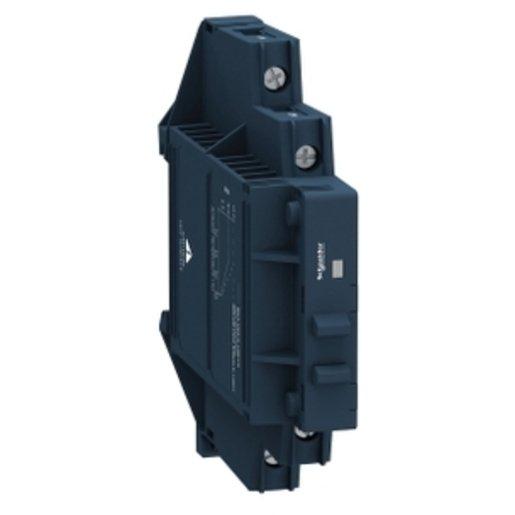

This Zelio SSM solid state modular DIN rail single - phase relay is rated 12A - is controlled with a 4V to 32V DC input - has a rated load voltage of 1V to 100V DC with DC switching It also has a visual indicator showing the

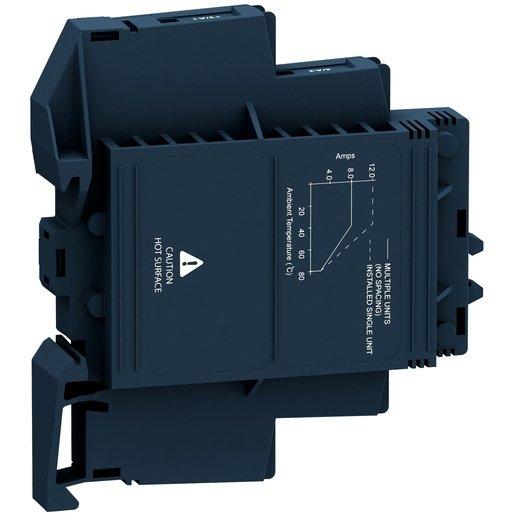

This Harmony SSM solid state modular DIN rail single-phase relay is rated 12A, is controlled with a 4V to 32V DC input, has a rated load voltage of 1V to 100V DC with DC switching. It also has a visual indicator showing the status of its input. Built-in heatsink for maximum performance and less spare parts to manage. It is also silent and reliable thanks to the absence of moving contacts. Its clear schematic on the side of the socket enables easier wiring and maintenance. 0 0 0 0 0 0 0 0 0 0 0 0 0 0

Technical Specifications

Solid state relay
Rated control supply voltage AC 60 Hz	0 V
Switching at zero-crossing	No
Modular version	Yes
Rated operation current Ie at AC-53b	0 A
Rated control supply voltage AC 50 Hz	0 V
Rated operation current Ie at AC-3	0 A


Number of phases	1
Voltage type for actuating	DC
Rated operation current Ie at AC-51	0 A
Rated operation current Ie at AC-1	0 A
Rated operation current Ie at AC-53a	0 A
Rated control supply voltage DC	4-32 V
