SELECTIVITY MOD.UNIV

Rexel Part:

SCDABL8PRP24100

Mfr Number:

ABL8PRP24100

Barcode:

3389119406918

Please LogIn

To view pricing, availability and special offers, click the button below and login.

Product Details

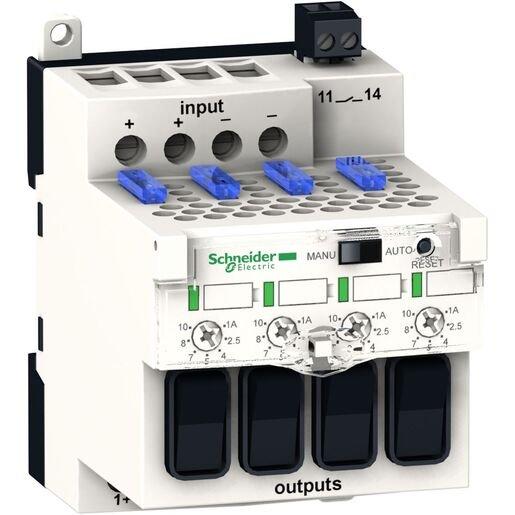

This ABL8 electronic protection module supplies direct current voltage. It has a rated input of 24V to 28.8V DC, a rated output current of 10A. This electronic protection module is ideal to protect up to 4 circuits against overloads and short-circuits with a total rated current of 10 amperes. It controls and protects up to 4 independent auxiliary circuits with a single power supply unit. Its complementary function is a 1-pole breaking by channel. It has LED diagnostics indicator available in the front for troubleshooting instantly. It weighs 0,470kg. It is a functionnal module for power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. It is certified by EAC, RCM. This functional module is mainly compatible with Modicon ABL8RP and Modicon ABL8WP Universal power supplies. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.

Technical Specifications

Current monitoring relay
Number of contacts as normally closed contact	4
Number of contacts as normally open contact	0
Function DC-current hysteresis	No
Contains function DC-voltage overcurrent	Yes
Three-phase under current possible	No
Three-phase hysteresis possible	No
With detachable clamps	Yes
Voltage type (supply voltage)	AC/DC
Contains function DC-voltage under current	Yes
External current transformer	No
Type of electric connection	Screw connection


Width	71 mm
Single-phase overcurrent possible	No
Single-phase under current possible	No
Current measuring range	10-40 A
Voltage type (operating voltage)	AC/DC
Three-phase overcurrent possible	No
Depth	103 mm
Height	110 mm
Number of contacts as change-over contact	0
Single-phase hysteresis possible	No
