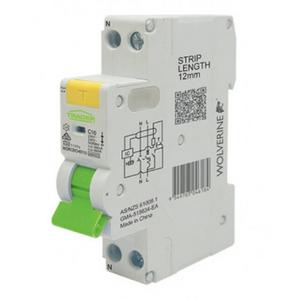

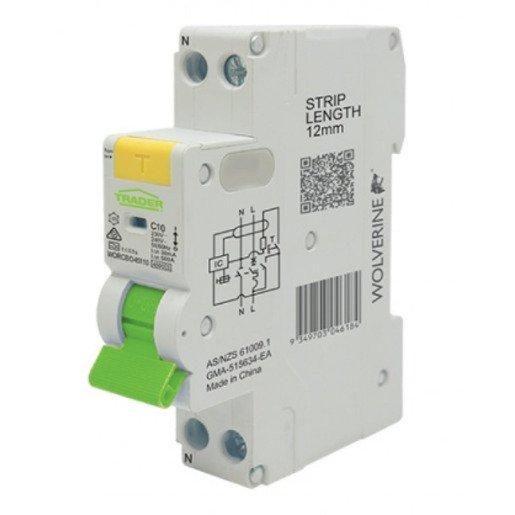

RCBO 4.5kA 1P 25A 230V 240V 30mA Typ A 1 Mod
Rexel Part:
TRGWORCBO45125
Mfr Number:
WORCBO45125
Barcode:
9349703046276
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
Supplier Packages :
Package options may not always be available
Package Options
Number of items
1 Box
10 EAC
1 Carton
100 EAC
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details
Wolverine Din Rail mounted RCBOs (WORCBO series) offer fast and flexible installation for safety of personal and equipment protection applications in domestic and small commercial environments as well as circuit protection up to 6kA. Being fully certified in accordance with standard AS/NZS 61009-1 and IEC 61009-1 (Residual current circuit breakers for household and similar purposes). Providing protection against short circuit, overcurrent situations and earth faults that may occur in equipment as well as reduce the effects of electric shock and save lives by cutting off supply if they have measured an imbalance between the live and neutral cables above the sensitivity level where current flowing in the live and neutral cables becomes imbalanced from current flowing to earth.
Technical Specifications
Technical Specifications
Residual Current/Earth leakage circuit breaker (RCBO,RCD/MCB) | |
| Number of protected poles | 1 |
|---|---|
| Number of poles (total) | 1 |
| Rated fault current | 30 A |
|---|---|
| Rated current | 25 A |
