RCBO 1P+Ns 25A C 30mA A 230V
Rexel Part:
SCDA9D11825
Mfr Number:
A9D11825
Barcode:
3606480558634
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
Supplier Packages :
Package options may not always be available
Package Options
Number of items
1 Carton
34 EAC
1 Pallet
1088 EAC
EAC
Min: 1 EAC
Technical Documents
Product Details
Product Details

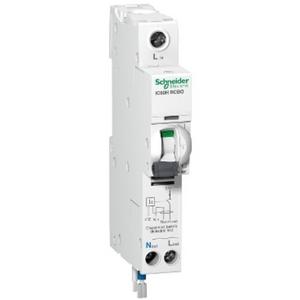

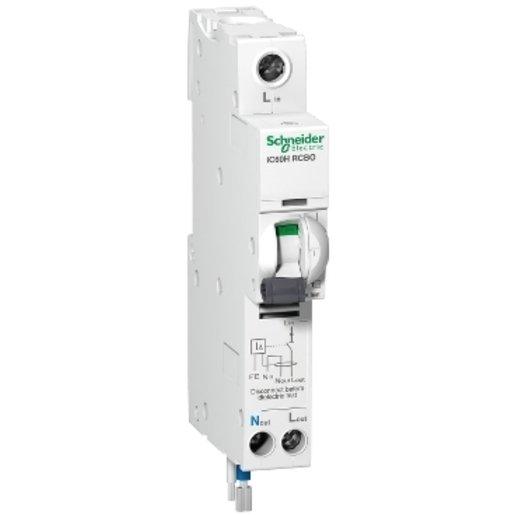

This Acti9 iC60 is a modular residual current breaker with overcurrent protection RCBO It is a 1P+N circuit breaker with 1 protected pole - 25A In rated current and C tripping curve The earth leakage protection class is A typ
Schneider Combo Electric Residual Current Breaker
- Protection of persons against electric shock by direct contact
- Combine short-circuit and overload currents protection
- One module width - Ideal for retrofit where space is limited
Schneider Combo Electric Residual Current Breaker
- Protection of persons against electric shock by direct contact
- Combine short-circuit and overload currents protection
- One module width - Ideal for retrofit where space is limited
- 25 AMP
- Single pole combo RCBO
- IC60H series.
- C trip curve.
- 30mA
- 240 V
- 1p+N
Technical Specifications
Technical Specifications
Does this product not have all the specifications you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
Residual Current/Earth leakage circuit breaker (RCBO,RCD/MCB) |
|
| Rated voltage |
240 V
|
|---|---|
| Rated short-circuit breaking capacity Icn according to EN 61009-1 |
10 kA
|
| Leakage current type |
A
|
| Number of poles (total) |
2
|
| Degree of protection (IP) |
IP20
|
| Disconnection characteristic |
Undelayed
|
| Ambient temperature during operating |
-15-60 °C
|
| Rated insulation voltage Ui |
400 V
|
| Over voltage category |
4
|
| Connectable conductor cross section solid-core |
1-25 mm²
|
| Built-in depth |
45 mm
|
| Number of protected poles |
1
|
| With interlocking device |
No
|
| Rated fault current |
30 A
|
| Connectable conductor cross section multi-wired |
1-16 mm²
|
| Rated impulse withstand voltage Uimp |
4 kV
|
|---|---|
| Anti-nuisance tripping version |
No
|
| Rated current |
25 A
|
| Voltage type AC-DC |
AC
|
| Pollution degree |
3
|
| Release characteristic |
C
|
| Concurrently switching neutral conductor |
Yes
|
| Rated short-circuit breaking capacity according to IEC 60947-2 |
30 kA
|
| Flush-mounted installation |
No
|
| Current limiting class |
3
|
| Width in number of modular spacings |
1
|
| Frequency |
50 Hz
|
| Surge current capacity |
0.25 kA
|
| Type |
C
|
| Model |
Acti 9 iC60 RCBO
|
