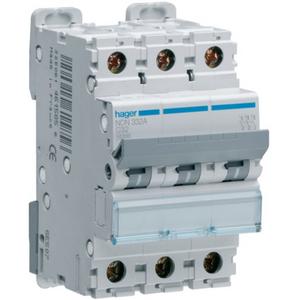

Miniature Circuit Breaker (MCB) 3P 32A 10kA D Curve
Rexel Part:
HAGNDN332A
Mfr Number:
NDN332A
Barcode:
3250614619274
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details
All miniature circuit breakers are sourced from leading Australian suppliers with an impressive range of MCB's to suit local conditions and requirements. They all have the relevant approvals and meet all applicable Australian
Mini circuit breakers - D curve, provides isolation, control and protection against short circuit and overload current. The state of isolation is clearly indicated by the 'OFF' mechanical position on the toggle with the green colour.
Mini circuit breakers - D curve, provides isolation, control and protection against short circuit and overload current. The state of isolation is clearly indicated by the 'OFF' mechanical position on the toggle with the green colour.
Technical Specifications
Technical Specifications
Does this product not have all the specifications you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
Miniature circuit breaker (MCB) |
|
| Rated current |
32 A
|
|---|---|
| Rated insulation voltage Ui |
500 V
|
| Voltage type AC-DC |
AC
|
| Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V |
10 kA
|
| Additional equipment possible |
Yes
|
| Pollution degree |
2
|
| Connectable conductor cross section solid-core |
1 mm²
|
| Breaking capacity |
10 kA
|
| Connectable conductor cross section multi-wired |
1 mm²
|
| Flush-mounted installation |
Yes
|
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V |
10 kA
|
| Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V |
10 kA
|
| Number of poles (total) |
3
|
| Built-in depth |
68 mm
|
|---|---|
| Number of protected poles |
3
|
| Release characteristic |
D
|
| Rated impulse withstand voltage Uimp |
6 kV
|
| Over voltage category |
3
|
| Rated voltage |
400 V
|
| Width in number of modular spacings |
6
|
| Degree of protection (IP) |
IP20
|
| Ambient temperature during operating |
-25 °C
|
| Frequency |
60 Hz
|
| Concurrently switching neutral conductor |
No
|
| Mounting method |
DIN rail
|
