All miniature circuit breakers are sourced from leading Australian suppliers with an impressive range of MCB's to suit local conditions and requirements. They all have the relevant approvals and meet all applicable Australian

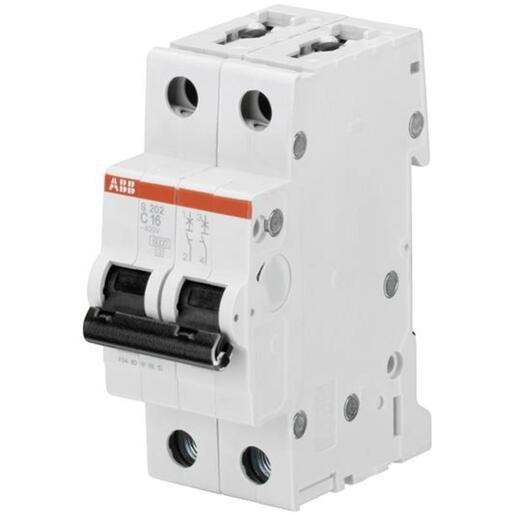

System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 (for this code purchased in South America there is no UL certificate), allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
System pro M compact S200 miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 6 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200 comply with IEC/EN 60898-1, IEC/EN 60947-2, UL1077 (for this code purchased in South America there is no UL certificate), allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200 to save 50% space.
Technical Specifications
Technical Specifications
Does this product not have all the specifications you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
Miniature circuit breaker (MCB) |
|
| Pollution degree |
3
|
|---|---|
| Rated current |
32 A
|
| Current limiting class |
3
|
| Connectable conductor cross section solid-core |
0 mm²
|
| Release characteristic |
C
|
| Additional equipment possible |
Yes
|
| Degree of protection (IP) |
IP20
|
| Connectable conductor cross section multi-wired |
0 mm²
|
| Voltage type AC-DC |
AC/DC
|
| Over voltage category |
3
|
| Flush-mounted installation |
No
|
| Concurrently switching neutral conductor |
No
|
| Frequency |
50 Hz
|
|---|---|
| Number of protected poles |
2
|
| Rated impulse withstand voltage Uimp |
4 kV
|
| Ambient temperature during operating |
-25 °C
|
| Rated insulation voltage Ui |
440 V
|
| Built-in depth |
69 mm
|
| Number of poles (total) |
2
|
| Rated voltage |
400 V
|
| Width in number of modular spacings |
2
|
| Breaking capacity |
6 kA
|
| Mounting method |
DIN rail
|
