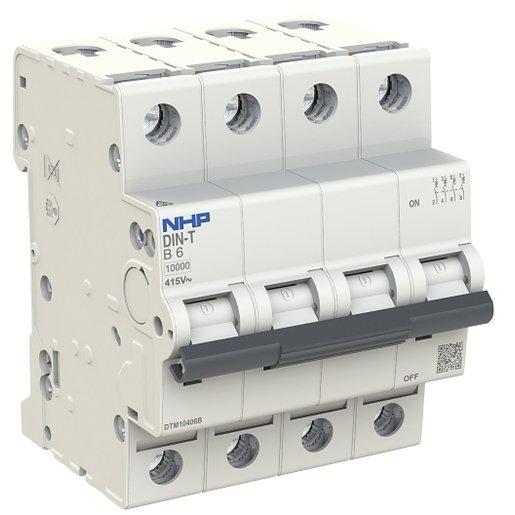

NHP DIN-T Miniature Circuit Breakers (MCB) are highperformance electrical protection devices offering a comprehensive range of features to meet the needs of any project. These MCBs are available in short circuit ratings of 6kA and 10kA with current ratings from 0.5A through to 125A in variety of B, C or D trip curves. These MCBs are available in 1P, 2P, 3P and 4P housings.
Technical Specifications
Technical Specifications
Miniature circuit breaker (MCB) | |
| Breaking capacity | 10 kA |
|---|---|
| Release characteristic | C |
| Number of poles (total) | 4 |
| Rated current | 20 A |
|---|---|
| Voltage type AC-DC | AC |
| Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V | 10 kA |
