Emergency Exit LED 24M Surf Swing Wireless Pro Razor Lynk
Rexel Part:
LYK14547
Mfr Number:
14547
Barcode:
9336462145470
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details
Emergency lighting provides illumination during power outages, ensuring safe evacuation and visibility. It includes battery-operated fixtures that activate automatically, crucial for compliance in commercial and public spaces

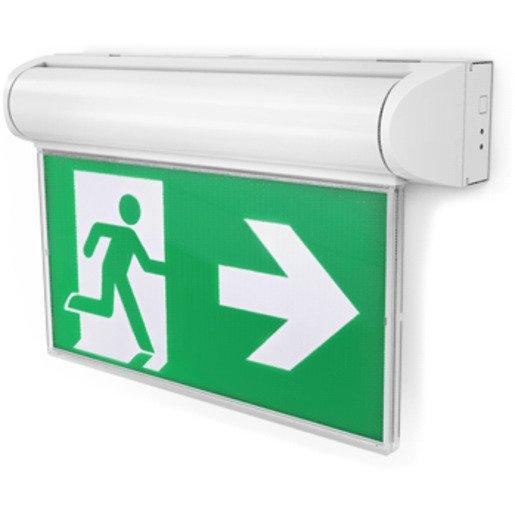

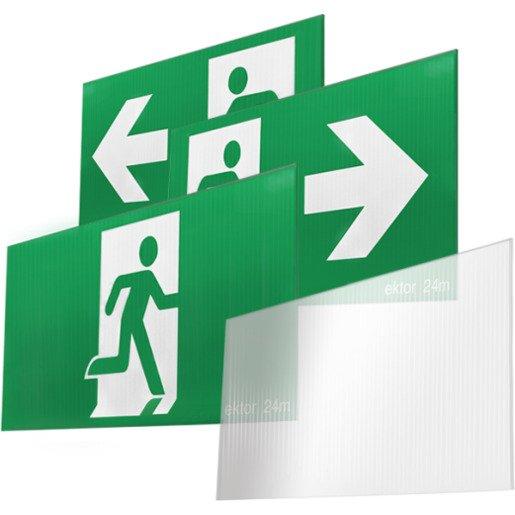

Razor Professional Adjustable Surface Mounted Emergency Exit, 24m Single and double-sided decals Soft-start charger to reduce building load Available in low illumination area black model Fast emergency switch-over (<0.5s) for high-task areas Chain and rod mounting with Surface and Rod Mount Kit Long life electronics High Quality Lithium battery (LiFePO4) and smart charger Universal slide-on/slide-off mounting Fully compliant (AS/NZS 2293) Self test (AS2293/IEC62034) Ektor wired monitored system DALI (IEC 62386-202) DT1
Razor Professional Adjustable Surface Mounted Emergency Exit, 24m Single and double-sided decals Soft-start charger to reduce building load Available in low illumination area black model Fast emergency switch-over (<0.5s) for high-task areas Chain and rod mounting with Surface and Rod Mount Kit Long life electronics High Quality Lithium battery (LiFePO4) and smart charger Universal slide-on/slide-off mounting Fully compliant (AS/NZS 2293) Self test (AS2293/IEC62034) Ektor wired monitored system DALI (IEC 62386-202) DT1
Technical Specifications
Technical Specifications
Does this product not have all the specifications you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
Emergency luminaire |
|
| Mounting method |
Surface mount
|
|---|---|
| Width |
92 mm
|
| Housing material |
Polycarbonate
|
| Length |
360 mm
|
| Max. system power |
3.7 W
|
| Rated ambient temperature according to IEC 62722-2-1 |
0-40 °C
|
| Nominal operation time |
1.5 h
|
| Degree of protection (IP) |
IP20
|
|---|---|
| Lamp type |
LED not exchangeable
|
| Housing colour |
White
|
| Height/depth |
260 mm
|
| Constant light output (CLO) |
Yes
|
| Recognition distance |
24 m
|
| Nominal voltage |
230 V
|
