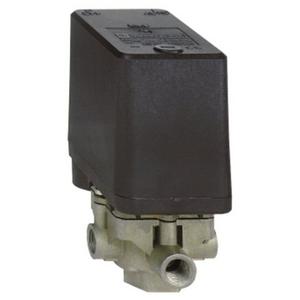

PRESSURE SWITCH XMP 25 BAR ADJUSTABLE SC
Rexel Part:
TELXMPA25B2131
Mfr Number:
XMPA25B2131
Barcode:
3389110601541
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
Supplier Packages :
Package options may not always be available
Package Options
Number of items
1 Pack
17 EAC
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details
The XMP switches are electromechanical pressure switches for control circuits They are used to control the pressure of water and air It is an IP54 switch with an adjustable differential for regulation between 2 thresholds - w
The XMP switches are electromechanical pressure switches for control circuits. They are used to control the pressure of water and air. It is an IP54 switch with an adjustable differential for regulation between 2 thresholds, without decompression valve. It is a bare case switch, without decompression valve. Ajustable range of switching point: from 3.5bar to 25bar or from 50.75psi to 362.5psi. 2 NC contacts, G 1/4 female fluid connection, 2 entries tapped for n°13 cable gland.
The XMP switches are electromechanical pressure switches for control circuits. They are used to control the pressure of water and air. It is an IP54 switch with an adjustable differential for regulation between 2 thresholds, without decompression valve. It is a bare case switch, without decompression valve. Ajustable range of switching point: from 3.5bar to 25bar or from 50.75psi to 362.5psi. 2 NC contacts, G 1/4 female fluid connection, 2 entries tapped for n°13 cable gland.
Technical Specifications
Technical Specifications
Does this product not have all the specifications you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
Pressure switch |
|
| Degree of protection (NEMA) |
Other
|
|---|---|
| Initial setting |
3,500 hPa
|
| Depth |
98 mm
|
| Number of auxiliary contacts as change-over contact |
0
|
| Switching capacity at AC-3, 240 V |
0 kA
|
| End setting |
100 hPa
|
| Max. test pressure |
0 bar
|
| Pressure-switching differential |
20 bar
|
| Rated operation power at AC-3, 400 V |
0 kW
|
| Type of electric connection |
Screw connection
|
| Thread size |
Other
|
| Rated operation current Ie at AC-3, 400 V |
0 A
|
| Bursting pressure |
100 bar
|
| With manual on/off switch |
No
|
| Rated operation current Ie at AC-1, 400 V |
0 A
|
| With hand operation |
No
|
| Width |
57 mm
|
| Height |
126 mm
|
| Explosion-proof |
No
|
| End value measuring range pressure |
0 Pa
|
|---|---|
| Suitable as 2-point controller |
Yes
|
| Suitable as limiter |
Yes
|
| Switch off pressure |
0.1 bar
|
| Electronic version |
No
|
| Rated voltage Ue at AC 60 Hz |
230 V
|
| Engaging pressure |
3.5 bar
|
| Number of normally open contacts as main contact |
0
|
| Rated voltage Ue at AC 50 Hz |
230 V
|
| Initial value measuring range pressure |
0 Pa
|
| Degree of protection (IP) |
IP54
|
| Number of auxiliary contacts as normally closed contact |
0
|
| Medium temperature |
0 °C
|
| Rated voltage Ue at DC |
0 V
|
| With display |
No
|
| Number of normally closed contacts as main contact |
2
|
| Suitable as guard |
No
|
| Adjustable current range |
0 A
|
| Number of auxiliary contacts as normally open contact |
0
|
