Isolator 40A 4Pole IP66 Switched Neutral
Rexel Part:
HAGJG440IN
Mfr Number:
JG440IN
Barcode:
3250617509770
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details

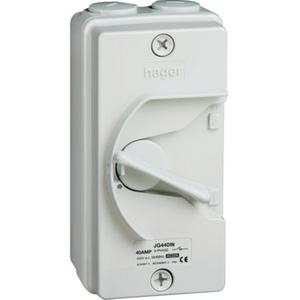

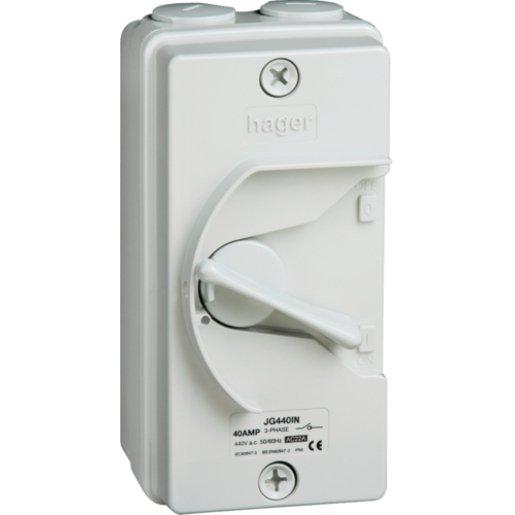

Hager Polycarbonate 4 Pole Isolator
IP66 outdoor rating.
Surface mounting.
Threaded entries.
IP66 outdoor rating.
Surface mounting.
Threaded entries.
Technical Specifications
Technical Specifications
Isolator | |
| Suitable for distribution board installation | No |
|---|---|
| Number of switches | 1 |
| Type of control element | Short thumb-grip |
| Rated permanent current Iu | 40 A |
| Motor drive integrated | No |
| Voltage release optional | No |
| Rated permanent current at AC-23, 400 V | 40 A |
| Interlockable | Yes |
| Number of auxiliary contacts as change-over contact | 0 |
| Device construction | Complete device in housing |
| Number of poles | 4 |
| Version as safety switch | Yes |
| Rated operating voltage | 380 V |
| Suitable for front mounting centre | No |
| Colour control element | Grey |
| Version as maintenance-/service switch | Yes |
| Type of electrical connection of main circuit | Screw connection |
|---|---|
| Suitable for floor mounting | Yes |
| Max. rated operation voltage Ue AC | 440 V |
| Version as reversing switch | No |
| Degree of protection (IP), front side | IP66 |
| Number of auxiliary contacts as normally open contact | 0 |
| Rated short-time withstand current lcw | 0.48 kA |
| Suitable for intermediate mounting | No |
| Motor drive optional | No |
| Rated operation power at AC-23, 400 V | 19.8 kW |
| Degree of protection (NEMA) | Other |
| Suitable for front mounting 4-hole | No |
| Version as emergency stop installation | No |
| Version as main switch | Yes |
| Number of auxiliary contacts as normally closed contact | 0 |
