COMPLETE LED P/L WHITE 24VACDC
Rexel Part:
SCDXB4BVB1
Mfr Number:
XB4BVB1
Barcode:
3389110891911
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
Supplier Packages :
Package options may not always be available
Package Options
Number of items
1 Pack
150 EAC
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details
This Harmony XB4 plain lens modular white pilot light is supplied with 24V AC/DC - uses an integral LED It has a metal bezel This pilot light - designed to last without maintenance for a bright indication of process and machi

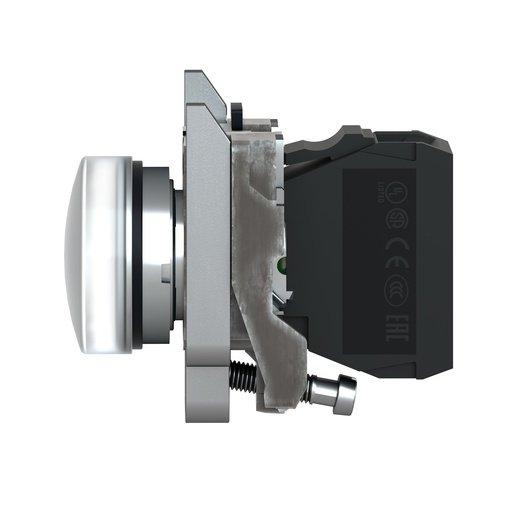

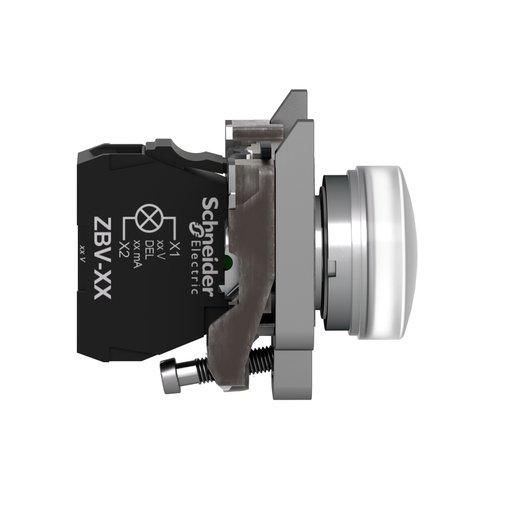

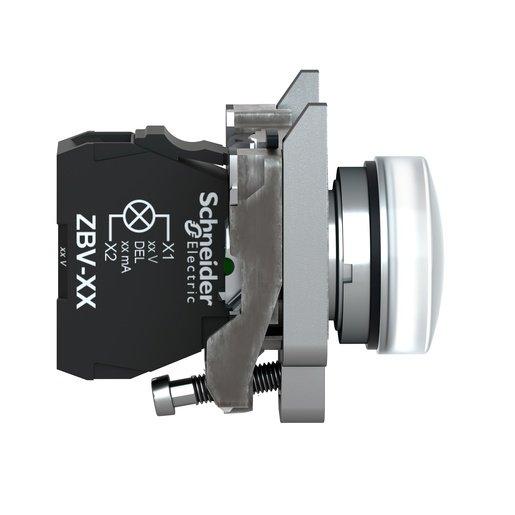

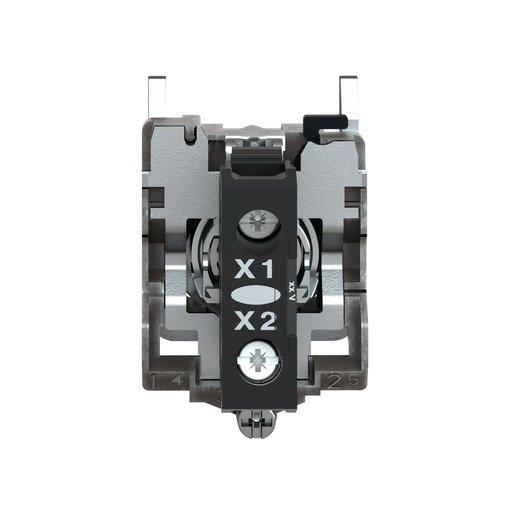

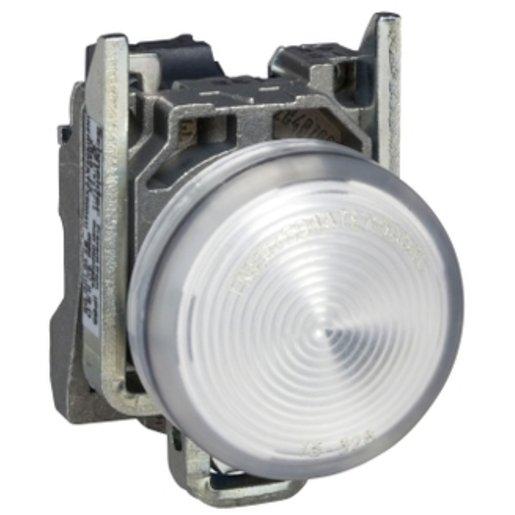

This Schneider Electric Harmony XB4 plain lens modular white pilot light is supplied with 24Vac/dc, uses an integral LED and screw clamp terminals. It has a metal body. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22 mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust proof, waterproof and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
This Schneider Electric Harmony XB4 plain lens modular white pilot light is supplied with 24Vac/dc, uses an integral LED and screw clamp terminals. It has a metal body. This pilot light, designed to last without maintenance for a bright indication of process and machine operations, is easily installed into standard 22 mm diameter cut-outs and connected with simple screw-clamp connections. It is clearly distinguishable visually at a distance thanks to a bright and long lasting LED illumination. It is impact resistant, dust proof, waterproof and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K, making it ideal for operation in harsh environments.
Technical Specifications
Technical Specifications
Does this product not have all the specifications you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
Indicator light complete |
|
| Degree of protection (IP) |
IP66
|
|---|---|
| Material front ring |
Metal
|
| Height opening |
0 mm
|
| Hole diameter |
22 mm
|
| Construction type lens |
Round
|
| Degree of protection (NEMA) |
13
|
| Type of lamp socket |
LED
|
| Type of lens |
Flat
|
| Colour front ring |
Chrome
|
| Colour lens |
White
|
|---|---|
| Rated operating voltage Ue |
24-24 V
|
| With light source |
Yes
|
| Type of electric connection |
Screw connection
|
| Width opening |
0 mm
|
| With front ring |
Yes
|
| Voltage type AC-DC |
AC/DC
|
| Number of indicator lights |
1
|
