ANALOG.BASE 8CHL SUB-D25
Rexel Part:
SCDABE7CPA31
Mfr Number:
ABE7CPA31
Barcode:
3389110836202
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details

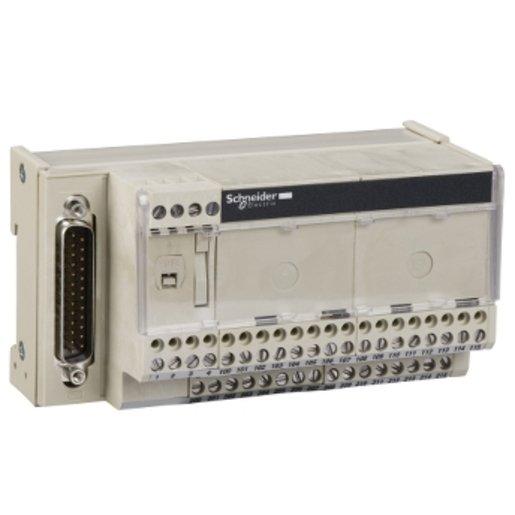

This connection sub-base is part of the Modicon ABE7 range, an offer of IP20 sub-bases for Telefast pre-wired system. It is for distribution of 8 analog input channels. It is a sub-base with a control circuit voltage of 24V DC. The distributed analog input channels are isolated from one another. It is furnished with screw type terminals for electrical connection and 25-way SUB-D connection to Programmable Logic Controllers (PLC). It is an IP20 rated product. It weighs 0.41kg. It is suitable for all types of industrial applications. This product is certified by LROS, DNV, UL, GL, BV and CSA. It meets CSA C22.2, IEC 61131 and UL 508 standards. This connection sub-base is suitable for use with Modicon X80 IO modules such as BMXAMI0800, BMXAMI0810 and BMEAHI0812. It is delivered in 1 package (PCE type). It can be fixed by clips (35mm symmetrical DIN rail) and screws (solid plate with fixing kit). Modicon ABE7 means greater simplicity to rationalise wiring in automation system equipment. Pre-wired system enabling connection and adaptation of control signals of PLC cards equipped with HE10 connectors.
Technical Specifications
Technical Specifications
Accessories/spare parts for controls | |
| Spare part | No |
|---|---|
| Type of electrical accessory/spare part | Other |
| Type of mechanical accessory/spare part | Other |
|---|---|
| Accessory | Yes |
