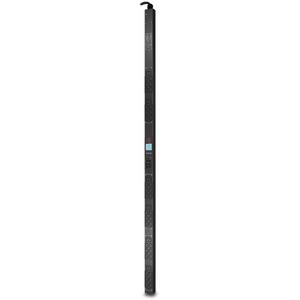

Rack PDU 2G Metered Zerou 11kW 230V (36) C13 And (6) C19
Rexel Part:
APCAP8881
Mfr Number:
AP8881
Barcode:
731304277071
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details
APC Metered Rack PDUs offer resilient power distribution and actively measure, display, and log volts, amps, real power (kW) & energy (kWh). This 3 phase PDU offers LCD display, real-time remote monitoring and user-defined alarms to help prevent circuit overloads that can cause accidental power loss to critical equipment. Historical reporting enables users to meter customer power usage, optimize energy use as well as plan for capacity . This zeroU PDU can operate at up to 60 degrees Celsius and can be accessed, configured, and managed remotely via EcoStruxure IT, Web, SNMP and Command Line Interface. Power is supplied to the PDU via IEC 309 3P+N+PE plug with a 1.8m (16 ft) cord while power comes out at 230 volts through (36) C13 and (6) C19 locking outlets. It integrates with EcoStruxure IT, and daisy-chaining is supported to monitoring up to 4 PDUs from 1 IP address as well as a local USB port for easy local firmware updates As a Green Premium product, this unit comes with a verified product environment profile, including carbon footprint, scope 3 emissions and end of life instructions.
Technical Specifications
Technical Specifications
Does this product not have all the specifications you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
Power distribution unit (PDU) |
|
| With LED indication |
No
|
|---|---|
| Number of height units |
0
|
| Mounting direction |
Vertical
|
| Number of socket outlets British Standard BS1363 |
0
|
| Switchable |
Yes
|
| Number of C19 socket outlets |
6
|
| Ampere meter |
Yes
|
| With mounting material |
Yes
|
| Colour |
Black
|
| Number of socket outlets with earth pin |
0
|
| With display |
Yes
|
| Mounting dimension (standardised) |
Other
|
| Number of other socket outlets |
0
|
| Number of C13 socket outlets |
36
|
| Number of socket outlets Swiss standard type 15 |
0
|
| With meter |
Yes
|
| Temperature measurement |
No
|
| With surge protection module |
No
|
| Depth |
44 mm
|
| Evaluation |
Other
|
|---|---|
| Mains filter |
No
|
| Number of C20 socket outlets |
0
|
| Number of socket outlets Swiss standard type 23 |
0
|
| Number of socket outlets Swiss standard type 25 |
0
|
| Number of USB connections |
0
|
| SNMP |
Yes
|
| Width |
56 mm
|
| Height |
1,791 mm
|
| Type of electric connection |
Other
|
| Electrical connection |
Connection cable with plug
|
| Supply voltage |
400 V
|
| Number of socket outlets Swiss standard type 13 |
0
|
| Control function |
Yes
|
| With fuse |
Yes
|
| Number of RJ45 sockets |
0
|
| Number of socket outlets with protective contact CEE 7/3 (type F) |
36
|
| Cable length |
1.8 m
|
