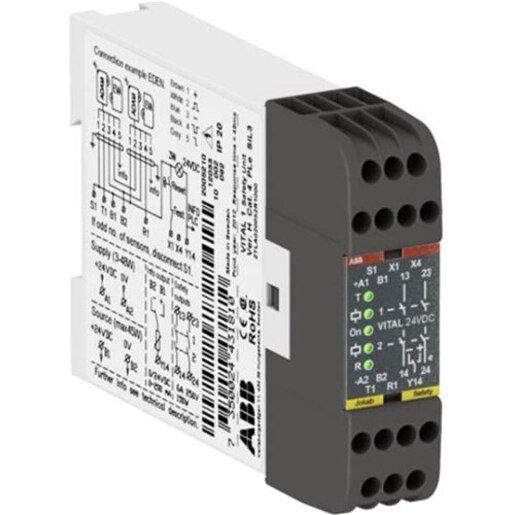

Device for monitoring of safety-related circuits
|Suitable for monitoring of position switches||Yes|
|Suitable for monitoring of emergency-stop circuits||Yes|
|Suitable for monitoring of valves||No|
|Suitable for monitoring of optoelectronic protection equipment||Yes|
|Suitable for monitoring of tactile sensors||Yes|
|Suitable for monitoring of magnetic switches||No|
|Suitable for monitoring of proximity switches||No|
|Type of electric connection||Screw connection|
|Rail mounting possible||Yes|
|Rated control supply voltage Us at AC 50HZ||0 V|
|Rated control supply voltage Us at AC 60HZ||0 V|
|Rated control supply voltage Us at DC||24 V|
|Voltage type for actuating||DC|
|With detachable clamps||Yes|
|With start input||Yes|
|With muting function||No|
|With feedback circuit||Yes|
|Number of outputs, safety related, undelayed, with contact||2|
|Number of outputs, safety related, delayed, with contact||0|
|Number of outputs, safety related, undelayed, semiconductors||0|
|Number of outputs, safety related, delayed, semiconductors||0|
|Number of outputs, signalling function, undelayed, with contact||0|
|Number of outputs, signalling function, delayed, with contact||0|
|Number of outputs, signalling function, undelayed, semiconductors||1|
|Number of outputs, signalling function, delayed, semiconductors||0|
|Category according to EN 954-1||4|
|Type of safety acc. IEC 61496-1||None|
|Stop category acc. IEC 60204||0|
|Performance level acc. EN ISO 13849-1||Level e|
|SIL according to IEC 61508||3|
|With approval for TÜV||Yes|
|With approval for BG BIA||No|
|With approval according to UL||Yes|
