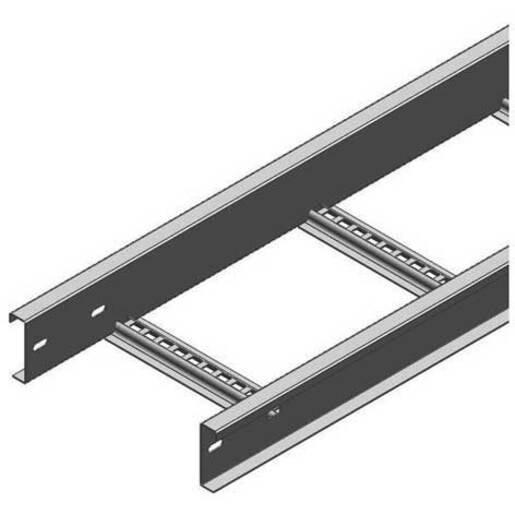

Cable Ladder Nema 2 900mm 6M Hot Dipped Galvanised
Rexel Part:
EZYN2L900H
Mfr Number:
N2L900H
Please LogIn
To view pricing, availability and special offers, click the button below and login.
Contact your local branch for availability.
EAC
Min: 1 EAC
Technical Documents
Technical Documents
Product Details
Product Details
Nema 2 cable ladder is manufactured from strip steel to the following standards:
Nema 2 offers a solution for supporting up to 113kg/m over a 4m span or 50kg/m over a 6m span in standard 6m lengths, although 3m MTO lengths can be supplied. The ladder allows for a cabling depth of up to 75mm. If you do not require this much load capability/depth try the Nema 1, or if you need more try the Nema 3 or 20C/20CE4.
- Mild steel and Hot Dip Galvanised to AS/NZS1365, AS1594, AS/NZS4680, ISO1461
- Stainless Steel to AS1449/AS2837
Nema 2 offers a solution for supporting up to 113kg/m over a 4m span or 50kg/m over a 6m span in standard 6m lengths, although 3m MTO lengths can be supplied. The ladder allows for a cabling depth of up to 75mm. If you do not require this much load capability/depth try the Nema 1, or if you need more try the Nema 3 or 20C/20CE4.
Technical Specifications
Technical Specifications
Does this product not have all the specifications you are looking for?
Please don't hesitate to conduct a search for other products with similar technical specifications.
To find similar products, please select the desired specifications from the white boxes below.
To help with your selection, try selecting the Select All button below then deselect any unwanted specification.
Please select at least 1 attribute to search.
Cable ladder/wide span |
|
| Width |
900 mm
|
|---|---|
| Length |
6,000 mm
|
| Type of rung |
Perforated profile
|
| Material |
Hot dip galvanised steel
|
|---|---|
| Height |
93 mm
|
